Cut To Length Line

Optimizing the advanced technology, we manufacture a qualitative range of Cut To Length Lines that are appreciated for their high performance and reliability. Designed with precision, these are technically accurate, robust in construction and have long functional life. Further, these machines are available in varied sizes and specifications to meet the diverse requirements of clients.

Cut To Length Line

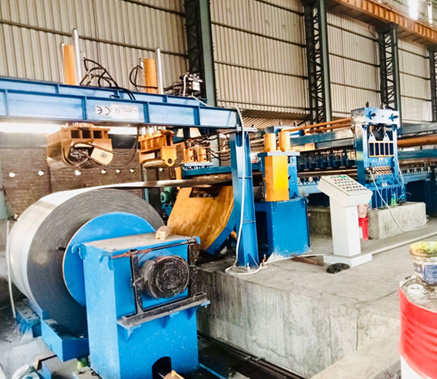

Fully Automatic Cut To Length Line

Fully Automatic Cut To Length Line

Fully automatic cut to length line - 2000x 6 mm.

Features:
  •  Capacity 1000 Ton/Month
  •  Cutting Length Accuracy +_ 1.0 mm
  •  Total Control by Single Desk
  •  Highly efficient & low power consumption
  •  Operation -   By single operator.

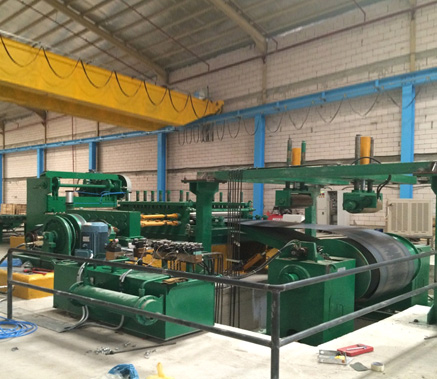

Cut To Length Machine

The cut to length lines automatically feeds & cuts to even or random as required lengths of sheets by power shear/ fly shear Using high precise straighteners. the machine has a single or double straightener as per requirements. These are technically accurate machines that have been assessed on performance & consistency in output before releasing to market.

Features :
  • Cut to length lines varied from 400 mm to 2500 mm width
  • Coil thickness varies from 0.20 mm to 16 mm ( CRC, HR, CRNGO & S.S. Material)
  • Weight of Coil varies from 3.0 ton to 30 tons
  • Operation : Hydraulic Power and Pneumatic Clutch
  • Construct : Made up of EN-31 material roller, hardened gears etc.
  • Control Line : Electrical Stopper & Servo Motor based.
  • Control Line Encoder : PLC Based

SPECIFICATIONS & FEATURES


  • We are manufacturing CTL Lines upto 400 - 3000 mm coil width.
  • Thickness of the Coil varies 0.20 - 20 mm of CRC, HR, Aluminium & SS Material.
  • Coil Weight varies 3.0 MT to 30 MT.
  • Shearing machines are available both type. (Pneumatic clutch operated & Hydraulically operated).
  • Straightner / Leveler machine rollers are made of Alloy Steels.
  • Driven by gears or auxiliary gear box.
  • Line speed upto 40 Meters per Minute.
  • Mechanical stopper control line.
  • Variable Speed of line - optional.
  • Electrical Stopper Control line - optional.
  • Encoder with PLC Control base line - optional.
  • NC Servo Motor high speed control line - optional.
  • Back tray, motorized conveyor or hydraulic stacker - optional.


Cut To Length Machine

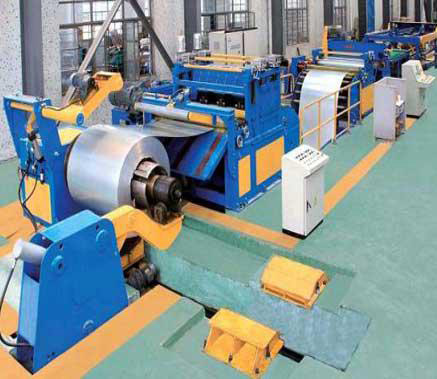

Cut To Length Lines

Cut To Length Lines
The cut to length lines automatically feeds & cuts to even or random as required lengths of sheets by power shear/ fly shear Using high precise straighteners. The machine has a single or double straightener as per requirements. These are technically accurate machines that have been assessed on performance & consistency in output before releasing to market.

Features :

  • Cut to length lines varies from 400 mm to 2500 mm
  • Width Coil thickness varies from 0.20 mm to 16 mm (CRC, HR, CRNGO & S.S. Material)
  • Weight of Coil varies from 3.0 ton to 30 tons
  • Operation : Hydraulic Power and Pneumatic Clutch
  • Construct : Made up of EN-31 material, alloy steel-roller, hardened gears etc.
  • Control Line : Electrical Stopper line NC Servo Motor based Line.
  • Control Line Encoder : PLC Based




High Speed Cut To Length Line

We hold expertise in developing a range of High Speed Cut To Length Lines, that can automatically feed and cut to even or random as required lengths of sheets by power shear/ fly shear. These high speed cut to length lines are available in ranges up to 1600 mm width & 4.0 mm sheet thickness with automatic coil loading, coil car, hydraulic stackers etc.



Other Information
  • Minimum Order Quantity: 01 Piece
  • Delivery Time: 60 days


High Speed Cut To Length Line


NC Servo High Speed Cut To Length Lines

NC Servo High Speed Cut To Length Lines
NC Servo High Speed Cut To Length Lines are available with automatic coil loading, coil car carrier, snubber, hydraulic stackers etc.

This Cut To Length Line (Loop Line) is one of our best acknowledged and appreciated product serving to a number of highly reputed metal cutting organizations. It gives highly accurate cutting option at high speed. Once the coil is loaded and line is started, desired products are obtained in no time.

NC High speed Cut To Length Lines are available a wide range with automatic coil loading, coil car carrier, hydraulic stacker/conveyor with high speed shear. The operation is controlled by state of the art manufactured touch screen control panel.


Specifications and Features
  • Width of Coil - 400 - 1600 mm.
  • Thickness of Material - 0.20 - 4.0 mm.
  • Line speed - upto 100 meters / min.
  • Operation - Control Panel.
  • Formations - Loop Line / Tight Line.




Sheet Straightener With Hydraulic Settings

Sheet straightener with hydraulic settings for ctl line etc.

Size- 2000x 16 mm for hr coils / hr sheets.


Sheet Straightener With Hydraulic Settings



Fully Automatic Cut To Length Line

Fully Automatic Cut To Length Line

(2000x 20 mm & 30 ton  coil capacity)

Production capacity: 300 ton/ day.




Hydraulic Power Pack

Hydrulic Power Pack- single unit for whole line - for easy setting & adjustment


Hydraulic Power Pack



Main Panel

Main Panel

Main panel for haviing all Suitable Feature like- vfd, plc & all controling features








Heavy Duty Cut To Length Line

Cut to lenght line- heavy duty
