HR Slitting Machine

HR Slitting Machine is an industrial slitting line which is extensively used for slitting of metal strips. This CR Coil Slitting Lines is used for slitting of various materials with adjustable speed. It comes with various user friendly specifications inbuilt by using latest and advance technology. This CR Coil Slitting Lines is tested on various quality parameters before delivered at the customer's end. Our product is widely used for slitting of different metals like CR / GP/ GI Coils, stainless steel coils, brass/ copper/ Alluminim coils. Furthermore, it is widely used in different industries for steel processing industries.

Get a Free Quote

Product Details

Features

  • Minimum quantity Order : 01No.
  • Brand : Hertz
  • Material : Steel
  • Production Capacity : Line speed 0- 120 MPM
  • Power : Variable Speed
  • Suitable For : CR/ GP/ GI/ BRASS /Copper
  • Automation Grade : Semi Automatic/ Automatic
  • Coil Width : 500 to 1650 mm
  • Coil Thickness : 0.20 mm to 4.0 mm
  • Coil Weight : 5.0 MT- 30 MT
  • Line Speed : 0 To 120 MPM
  • High running accuracy of slit coils.
  • Constant parallel distance between the last deflector roll and re-coiler drum
  • Straight edged recoiling
  • Economic efficiency due to high automation level
  • Automatic Strip Threading
  • Minimum Burr on strip
  • Less maintenance
  • Easy installation

Technical Details

Silent Features

Application Areas

Narrow Width Line:
  • Coil width : 100 to 500 mm
  • Coil Thickness : 0.20 to 3.5 mm
  • Coil Weight : 1.0 MT to 3.0 MT
  • Line Speed : 0- to 120 MPM
Wider CR slitting Line:
  • Coil width : 500 to 1650 mm
  • Coil Thickness : 0.30 to 3.5 mm
  • Coil Weight : 5.0 MT to 30 MT
  • Line Speed : 0- 120 MPM
  • Traverse Un-Coiler for positioning the coil
  • Single/ double mode slitter for thinner gauge.
  • Scrap wider/ scrap bailer as per requirement.
  • De-burring unit for burr mashing.

Ask For Price
Click Here

  • Metal cutting industry
  • Steel industry
  • Piping industry
HR Slitting Machine

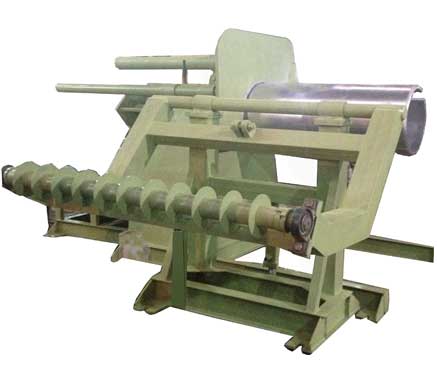

Motorized Re-Coiler Machine

  • Re-Coiler machines are upto 20-ton capacity
  • Width upto 2000 mm
  • Jaws expansions by hydraulically operated.
  • With Hydraulic Pusher.
  • Complete M.S fabricated body.
  • No. of jaws: -04 Made up of alloy steel ground finish.
  • Driven by Electrical motor with attached helical gear box.

Get a Free Quote

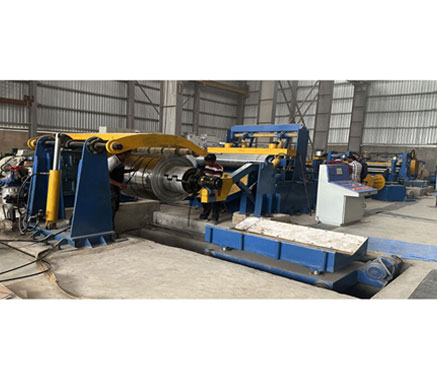

CR Coil Slitting Machine

We are manufacturer & exporter of Coil Slitting Machine, CR Coil Slitting Machine & HR Coil Slitting Machine from Ghaziabad, India. Our CR Coil Slitting Machines are used to slit a variety of materials. They have a number of user-friendly features that were incorporated into it utilizing cutting-edge technology. Before being supplied to the client, these Lines are tested on a number of quality-related criteria. They are very effective and safe to use. CR Coil Slitting Machines are tested under various parameters to ensure their high quality and effectiveness. They are very much liked and highly appreciated by people, in the market.

Our product is widely used for slitting of different metals like carbon steel, stainless steel, brass, copper, aluminum etc. Furthermore, it is widely used in different industries for strip processing and coil handling purposes.

Get a Free Quote

Features :

  • Re-Coiler machines are upto 20-ton capacity
  • Width upto 2000 mm
  • Jaws expansions by hydraulically operated.
  • With Hydraulic Pusher.
  • Complete M.S fabricated body.
  • No. of jaws: -04 Made up of alloy steel ground finish.
  • Driven by Electrical motor with attached helical gear box.

DETAILS OF SLITTING LINE MACHINE:

De-coiler & Un-coiler Unit
The de-coiler/uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.

Snubber & Pillar Table Assembly
Snubber is used for pressing the coil O.D. Snubber can be operated either hydraulically or pneumatically. Hydraulically operated pillar table facilitates the entry of sheet into straightener/leveler.

Sheet Leveler
The leveler is used to level the coil to desired flatness range. The feed rolls make the entry & exit of sheet from straightener easy. The rolls can be adjusted manually, hydraulically or by motor. Rolls are hardened to HRC 55-60. Provides good abrasion resistance & long service life.

Shearing Unit
Entry or Exit Shearing is provided according to customer's requirement. This unit is hydraulic.

Slitter Assembly
The coil is cut width wise as required by the cutters provided in the slitter assembly. The slitter is provided with feed rolls for facilitating the entry & exit of sheet. Separator is provided for providing a gap between slits.

Pinch Roller / Pressure Pad & Deflector Rolls
These are used for tightening & ease the rewinding of slitted coil.

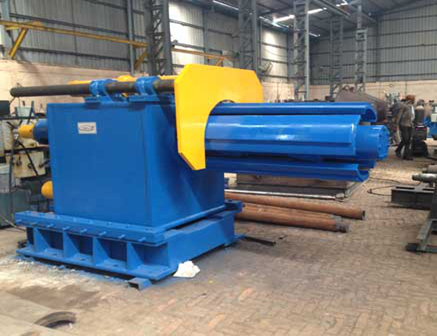

Re-Coiler Unit

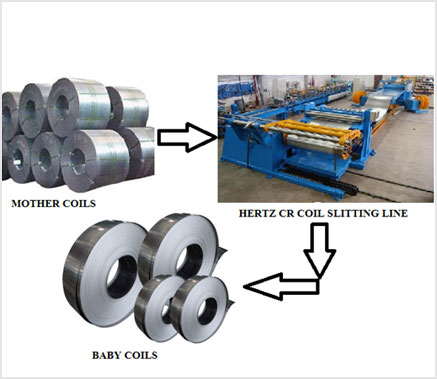

This unit rewinds the slitted coils into baby coils. Unit is provided with drive. Separator is also provided in this unit.

Coil Car - Entry & Exit
Coil Car/ Lifter eases the work of un-loading the slitted coils from Re-coiler's Jaws. Coil Car is power driven and can move to & from on rails. Coil Car move up & down by hydraulic cylinder. For light coils, coil hanger can be used

Scrap Winders
Driven by A/C geared motor/hydraulic motor to rewind the scrap.

Applications Area:

  • Metal cutting industry
  • Steel industry
  • Piping industry

CR Coil Slitting Machine
