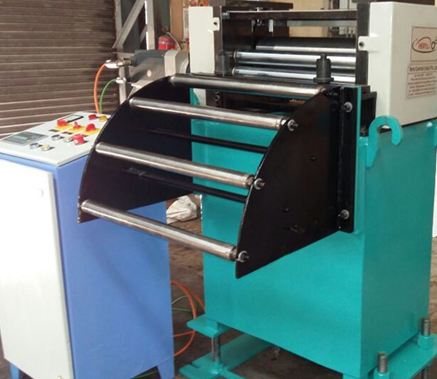

NC Servo Feeders

NC Servo Feeders we offer has caliber to perform nonstop functions without failing. Our product is manufactured using the certified materials. Product has seamless applications in automobile, electrical and chemical industries. Driving motor with different speed controls is a special feature makes our range distinct in comparison of those which are already available in market. Our company believes in providing the best in class products for convenient operations with advanced interface controls.

Hertz Controls aims at introducing latest technology have brought NC Servo Roll feeder for presses. We have installed our feeders in various part of country to handle sheet width 200/300/400/600/800/1000/1300/1600/1800 mm & thickness 0.2 to 6.0 mm with highly accuracy 0.050 mm.

Get a Free Quote

Specifications & Features

Characteristics

  • NC Servo moter fitted, precise feed measurements with extremely small error.
  • Feed rollers surface specially treated.
  • Hard chrome plated upto minimum hardness HRC 60 for high resistance.
  • Human machine interface control for convenient operations.
  • Pneumatic release for highly accurate operation.
  • Custom made designs models are also available if requested.
  • Material Width: Max 300/400/500/600/800/1000/1300/1600/1800 mm.
  • Material Thickness: 0.2-6.0 mm.
  • NC Servo motor fitted for precise feed measurements.
  • Feed rollers surface specially treated.
  • Hard chrome plated up to minimum hardness HRC 60 for high resistance. PU coated rolls are used for SS / Aluminium Coils.
  • Human machine interface control for convenient operations.
  • Pneumatic release for highly accurate operation.
  • Designs can be customized according to customer’s requirement.
  • Can be fitted on press or placed separately.

Ask For Price
Click Here

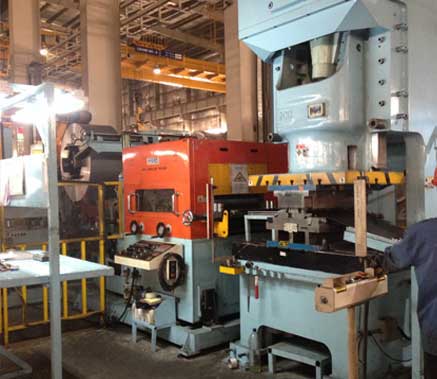

NC Servo Auto Reel And Levelers

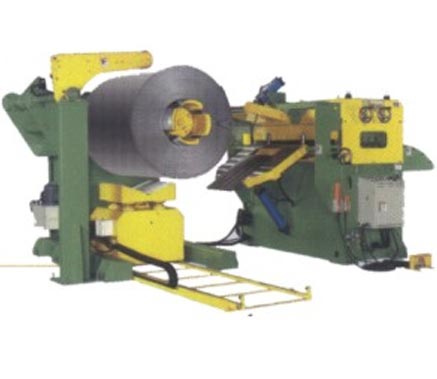

NC Servo 3-in-1 Series

This unit consists of De-coiler, Straightener & Servo Feeder on a single platform. It is made using latest technology. The design & shape give it a unique look. It requires less space. NC Servo Motor controlled for better tolerance. Can be used with press or shearing machine for different purposes.

NC Servo Auto Reel And Levelers
