Home / Product Range / Auto Blanking Line / NC Zig-Zag Auto-Blanking Line

NC Zig-Zag Auto-Blanking Line

We expertise in manufacturing a range of AUTO-BLANKING LINE for producing different shapes like circle, rectangle, square etc. We use advance technology in designing & developing highly productive machinery. We aim at giving maximum output with minimum scrap with minimum efforts. Our machinery is safe and stable. The line is available in different sizes. We can also customize the line as per our customer’s requirement. We also export our machinery to different region of the world.

Get a Free Quote

Features

List of Machinery Used

  • Fully NC control machine with touch screen facility.
  • Coil is feeded into the press with zig-zag feeder which moves in 2 axis with the help of servo motors.
  • Y-axis movement on hardened chrome rods by highly accurate linear ball screw.
  • Different sizes available from 600 mm to 1300 mm sheet width.
  • Very efficient for blanking of SS coils (from 75 mm to 800 mm sheet width).
  • High speed.
  • Yield/ Recovery is very high.
  • Single desk operated machine.
  • Low maintenance.
  • Coil Car Carrier
  • De-coiler Machine
  • Loop Table
  • NC Servo Roll Feeder (Two-Axis)
  • Power Press - 'H' Frame 'C' Frame (Can be Pneumatic Clutch Operated)
  • Scrap Chopper Machine/Re-coiler
  • Auto Conveyor
  • Auto Stacking


Ask For Price
Click Here




Note

Our line can include all or some of the above machinery as per customer's requirement. Though we provide complete line including press, our machinery can also be synchronized with your existing press ( if you have).

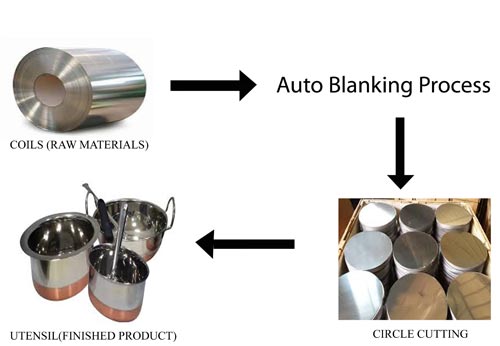

Why we use Auto Blanking Line ?

Why We Use Auto Blanking Line


Specification

S.No. De-coiler Servo Feeder - Width (mm) Blank Size(inch) Thickness Range(mm) Press Capacity(MT)
1 3.0 MT 650 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
2 3.0 MT 1300 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
3 5.0 MT 650 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
4 5.0 MT 1300 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
5 10 MT 650 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
6 10 MT 1300 16 0.30 -0.50 40
0.30 -0.60 50
0.30 -0.80 60
0.30 -1.0 80
18 0.30 -0.60 50
0.30 -0.70 60
0.30 -0.80 70
0.30 -1.0 90
20 0.30 -0.50 50
0.30 -0.60 60
0.30 -0.80 80
0.30 -1.0 100
